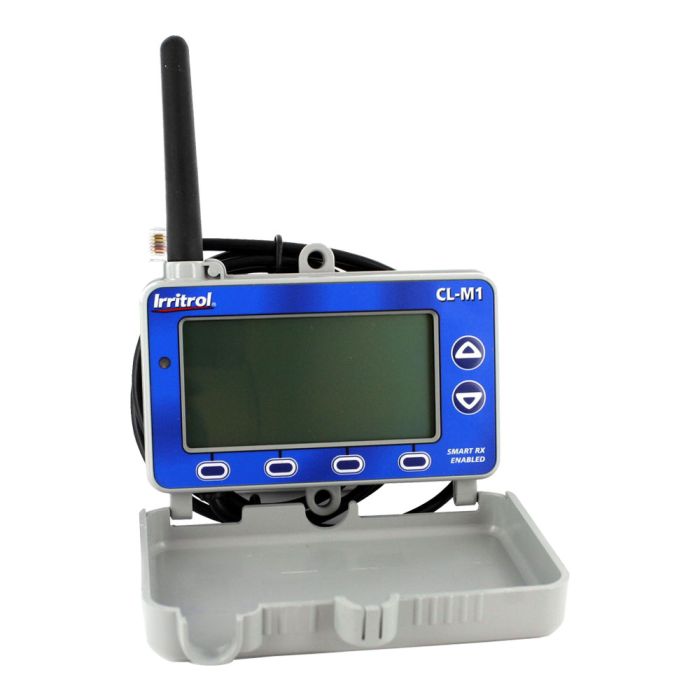

For simple, water saving, weather-following, automatic irrigation control, Irritrol introduces the Climate Logic wireless weather system. Consisting of two components; a wireless transmitting weather sensor for installation outdoors and a receiver module to attach to the Irritrol controller. The system monitors weather data, transmits them to the module and then alters the controller's program based on the weather. As for compatibility, the Climate Logic weather system works with the Rain Dial-R, the Total Control-R, KwikDial and a new generation of MC-E commercial controllers.

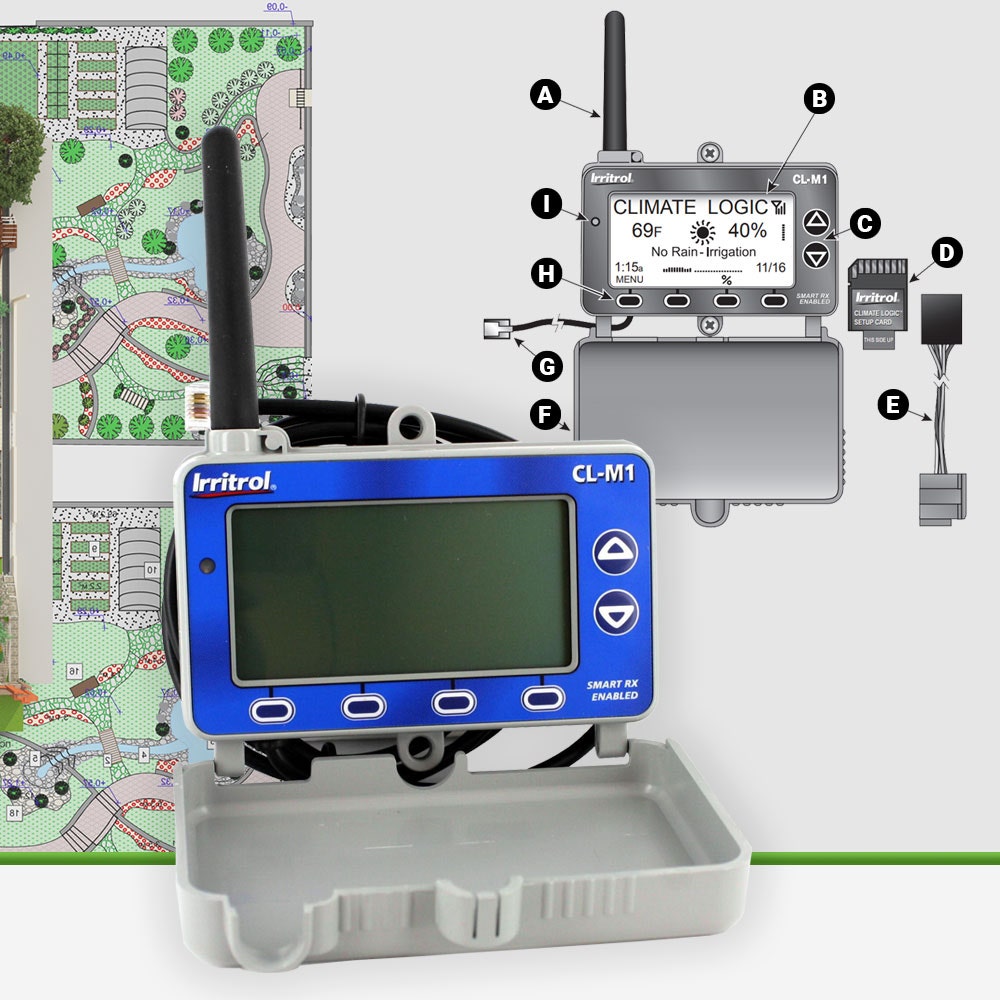

Diagram Details

• A Antenna
• B LCD Screen: Large-format LCD screen provides enhanced clarity and use of text and graphics.
• C Up/Down Arrow Keys: Control Menu cursor position, and adjust definable screen values.
• D Setup Card: Provides historical weather data for the regional location specified by ZIP code or Lat/Lon coordinates.
• E CMR-ADP KwikDial Adaptor Cable: Adapts RJ25 connector to KwikDial controllers 5-pin receptacle.
• F Cover: Provides weather-resistance and display protection in the closed position.
• G Connector Cable: Plugs into controllers remote control receptacle.
• H Multifunction Keys: Key function is configured for each screen as required.
• I LED Status Indicator: Remains On when irrigation is suspended; flashes when bypassed.
