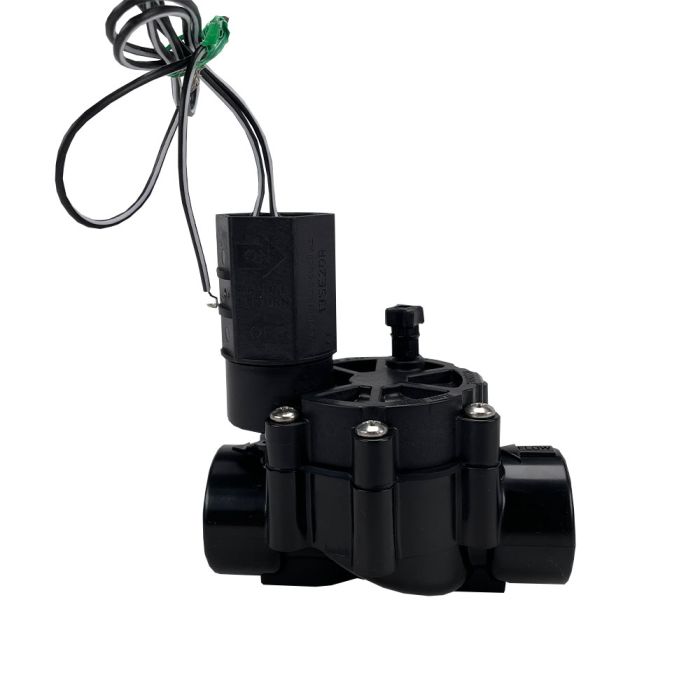

Rain Bird DV Inline Valve 1 in. Slip | 100-DV-SS

SKU
100-DV-SS
Sales Price $21.35 Our Price $35.14 You save 39%

Rain Bird DV-SS 1" Slip Valve without Flow Control

  • 1" Rain Bird 100-DV-SS Valve
  • Without Flow Control
  • 1" Slip Inlet/ Outlet

Features & Benefits

The Industry's #1 Plastic Residential Irrigation Valves. Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. All of our valves work with any standard sprinkler timer.

  • 1 in. Slip Valve without Flow Control
  • Double-filtered (Diaphragm and Solenoid) pilot-flow design for maximum reliability and grit resistance.
  • Balanced-pressure diaphragm for long life.
  • External bleed to manually flush system of dirt and debris during installation and system start-up.
  • Internal bleed for spray-free manual operation.
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter.
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream.
  • 1.25" (3,2 cm) stainless steel phillips head screws.
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Unique, easy-to-turn pressure assisted flow control mechanism (DVF Models Only)
  • Five-year trade warranty.
  • One solenoid handle per order
  • Not recommended for use with two-wire control systems

Product Details

  • Pressure: 15 to 150 psi (1.0 to 10.4 bar)
  • 075-DV Non-Flow Control Model: 0.2 to 22 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.
  • 100-DV Non-Flow Control Model: 0.2 to 40 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.
  • 100-DVF Flow Control Model: 0.2 to 40 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.
  • Temperature: Up to 110° F (43° C)
  • Ambient air temperature: Up to 125° F (52° C)
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.450A inrush current; 0.250A holding current
  • Solenoid coil resistance: 38 Ohms

Dimensions

DV Valves

  • Height: 4 ½" (11.4 cm)
  • Height (Angle): 5 ½" (14 cm)
  • Length:4 ⅜" (11.1 cm)
  • Length (Angle): 3 ¾" (9.5 cm)
  • Length (MB): 5 ¾" (14.6 cm)
  • Width: 3 ⅓" (8.4 cm)

DVF Valves

  • Height:5 ⅗" (14.2 cm)
  • Length:4 ⅜" (11.1 cm)
  • Length (MB):5 ¾" (14.6 cm)
  • Width:3 ⅓" (8.4 cm)

Models

  • 075-DV: ¾" (20/27) NPT
  • 100-DV-NPT: 1" (26/34) NPT female x female*
  • 100-DV-SS: 1" (26/34) slip x slip
  • 100-DV-A: 1" (26/34) NPT female x female
  • 100-DV-MB: 1" (26/34) male x barb
  • 100-DVF-NPT: 1" (26/34) NPT female x female*
  • 100-DVF-SS: 1" (26/34) slip x slip
  • 100-DVF-MB: 1" (26/34) male x barb
  • *Available with BSP threads
DV AND DVF VALVE PRESSURE LOSS (PSI)
FLOW GPM 075-DV 3/4 IN. PSI 100-DV/100-DVF 1 IN. PSI
1 3.2 3.3
3 3.9 3.6
5 4.2 3.8
10 5.0 3.8
20 7.7 5.1
30 - 6.4
40 - 8.6



DV AND DVF VALVE PRESSURE LOSS (BAR)
FLOW M3/H L/M 075-DV 3/4 IN. BAR 100-DV/100-DVF 1 IN. BAR
0.23 4 0.22 0.23
0.60 10 0.26 0.24
1.20 20 0.29 0.26
3.60 60 0.45 0.32
4.50 75 0.53 0.35
6.00 100 - 0.41
9.00 150 - 0.59



100-DV ANGLE, MXB VALVE PRESSURE LOSS (PSI)
FLOW GPM 075-DV 3/4 IN. PSI 100-DV/100-DVF 1 IN. PSI
1 2.8 2.5
3 3.0 2.9
5 3.2 3.0
10 3.9 3.1
20 4.3 4.3
30 5.4 7.4
40 8.2 12.7



100-DV ANGLE, MXB VALVE PRESSURE LOSS (BAR)
FLOW GPM L/M 075-DV 3/4 IN. BAR 100-DV/100-DVF 1 IN. BAR
0.23 4 0.19 0.17
0.60 10 0.20 0.19
1.20 20 0.22 0.21
3.60 60 0.28 0.26
4.50 75 0.30 0.30
6.00 100 0.35 0.44
9.00 150 0.56 0.86



Related Articles & Videos

Articles

Videos

More Information
Brand Rain Bird
Product Type Inline Valves
Body Material Heavy-Duty Plastic Body
Flow Control No Flow Control
Valve Type In-Line
Connection Slip
Application Residential
Solenoid Yes
Warranty 5 Years
Size 1 in.
Manual (398.89 kB)
Specifications (337.36 kB)
Brochure (528.28 kB)
Manual (549.90 kB)
