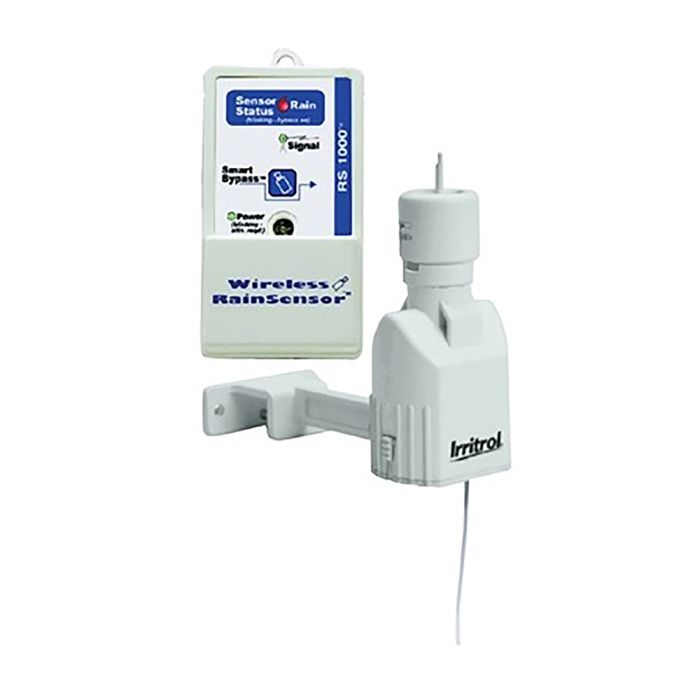

Taking water management to the next level, the proven Irritrol® RainSensor Series makes watering in the rain a mistake of the past. The reliable wireless and wired rain sensors conserve water by preventing irrigation during or after sufficient rainfall, while the wireless rain/freeze sensor also helps reduce vegetation damage and icing conditions when the temperature drops below a predetermined set point. With its compact design and host of convenient features, the RainSensor Series is the perfect complement to any standard controller.
A - Spindle: Press down and hold to manually test transmitter operation.
B - Rainfall Adjustment Cap: Adjusts the Sensor/Transmitter to signal the receiver when the accumulated rainfall reaches 1/8" (3mm), 1/4" in. (6mm), 1/2" in. (12mm) or 3/4" in. (19mm).
C - Vent Ring: Adjust the "dry-out" rate.
D - Universal Mounting Bracket with Quick-ClipTM: Simplifies installation on rain gutter, or roof eaves, fences, etc. Sensor/Transmitter adjusts easily to the vertical position.
E - Conduit Adapter: Alternative mounting option for conduit mount.
F - Antenna Wire: Straighten downward for maximum range.
